Domestic property in East Sussex
Burwash Common · East Sussex · Case study
Separating sewage and rainwaterat Burwash Common
A replacement treatment system for a property where the original brick tank had been receiving both sewage and rainwater.
Discuss a similar project
An ageing arrangement serving the property
A new domestic treatment plant
Rainwater redirected away from the sewage system
A brick tank receiving sewage and rainwater
The existing brick-built septic tank dated from around 1910 and was receiving both sewage and rainwater from the property.
Treatment and rainwater routes separated

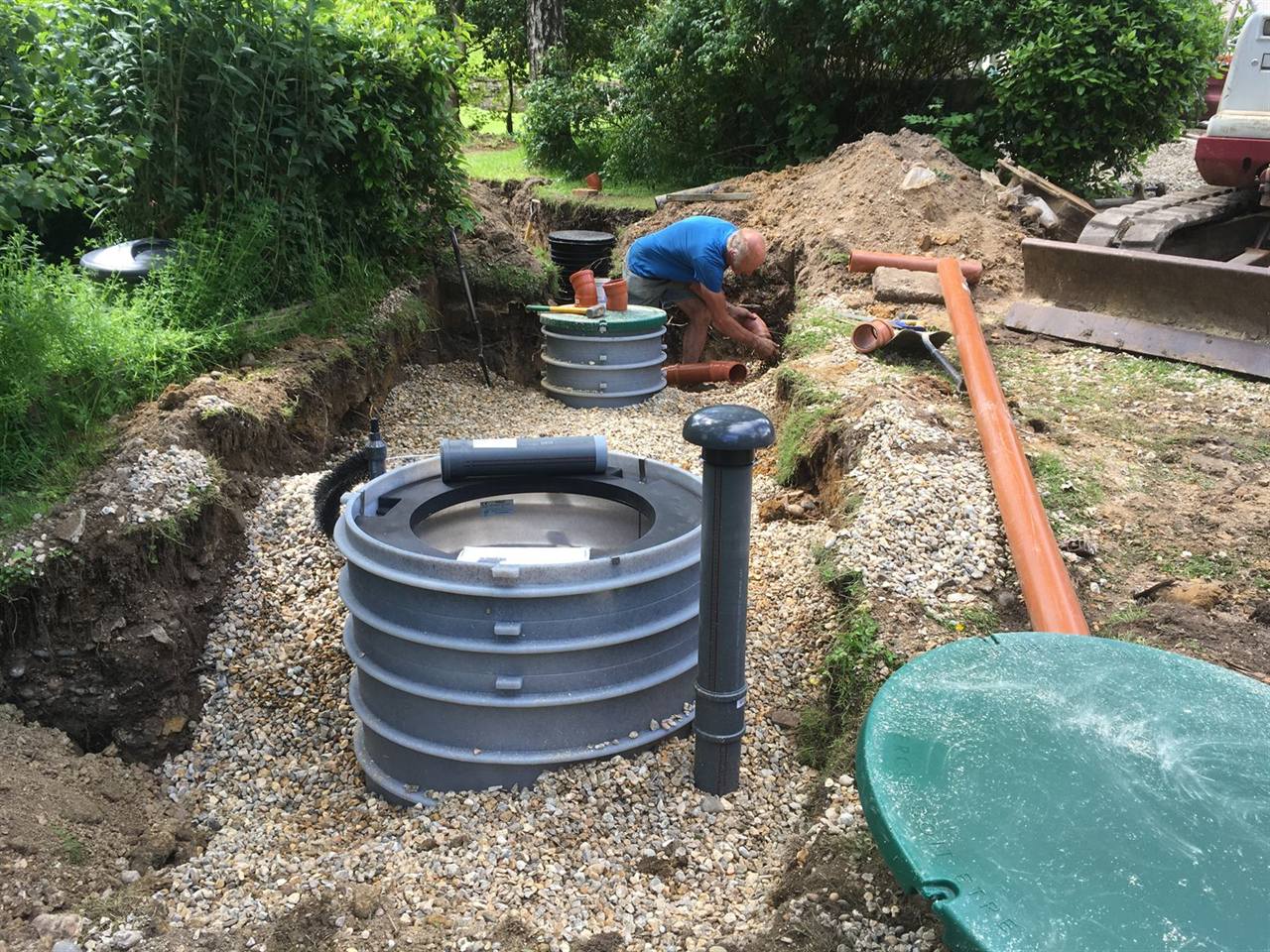

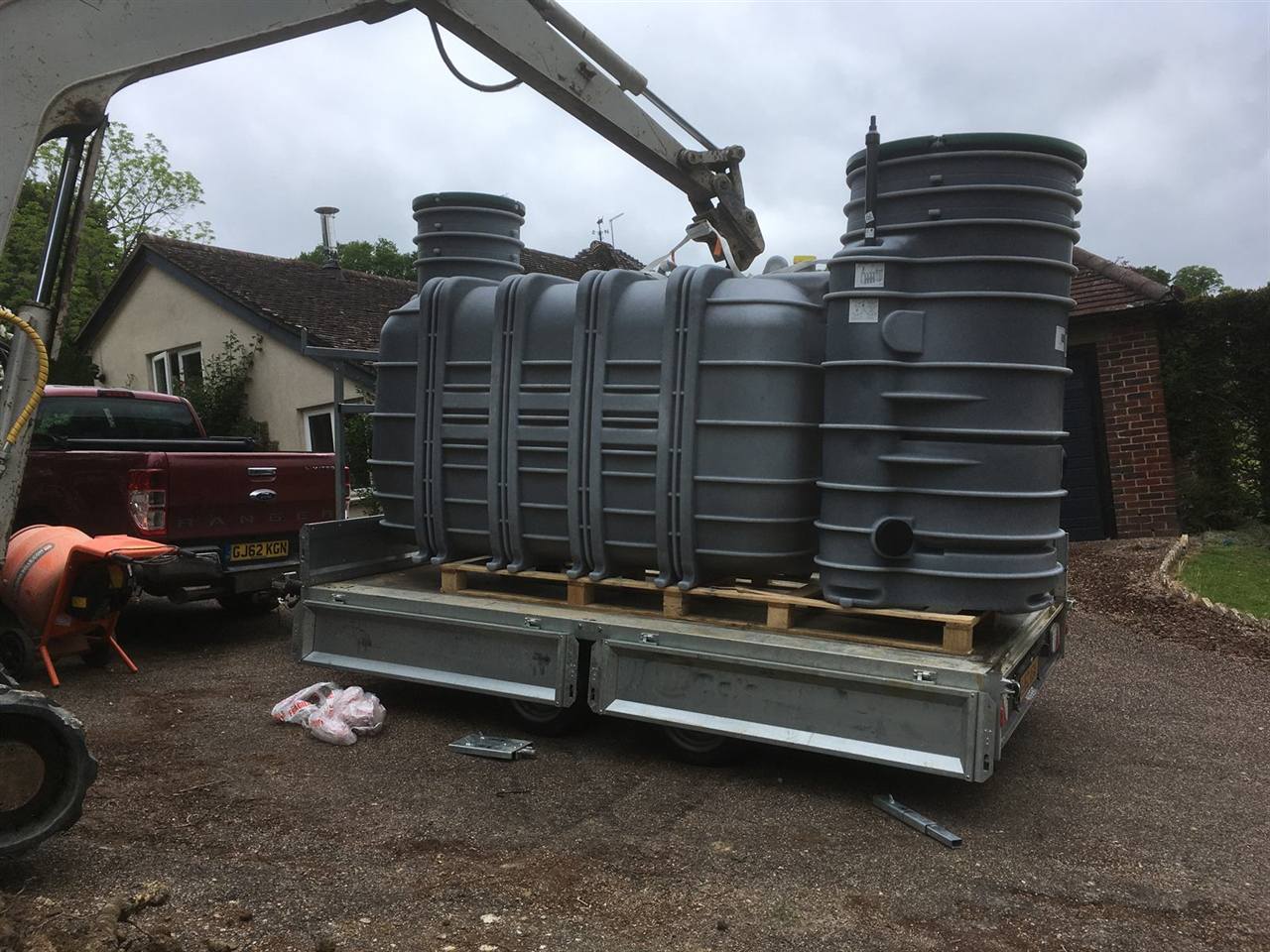

A BIOROCK Monoblock 3-1000 was installed for sewage treatment. Rainwater was removed from the sewage line and redirected to new soakaways.
Project details
The starting point
The existing brick-built septic tank dated from around 1910 and was receiving both sewage and rainwater from the property.
The solution
A BIOROCK Monoblock 3-1000 was installed for sewage treatment, while rainwater was redirected to new soakaways.
The work

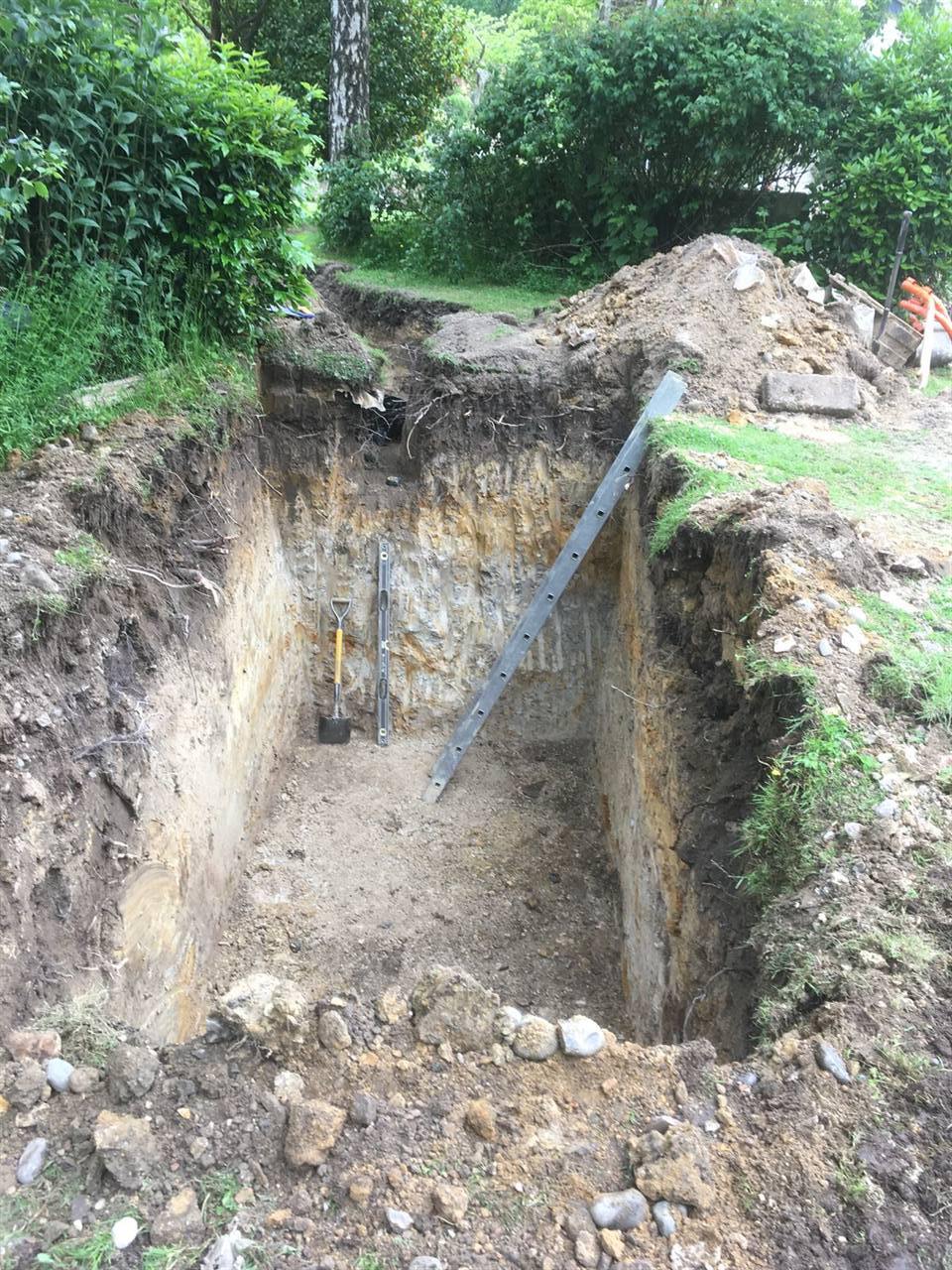

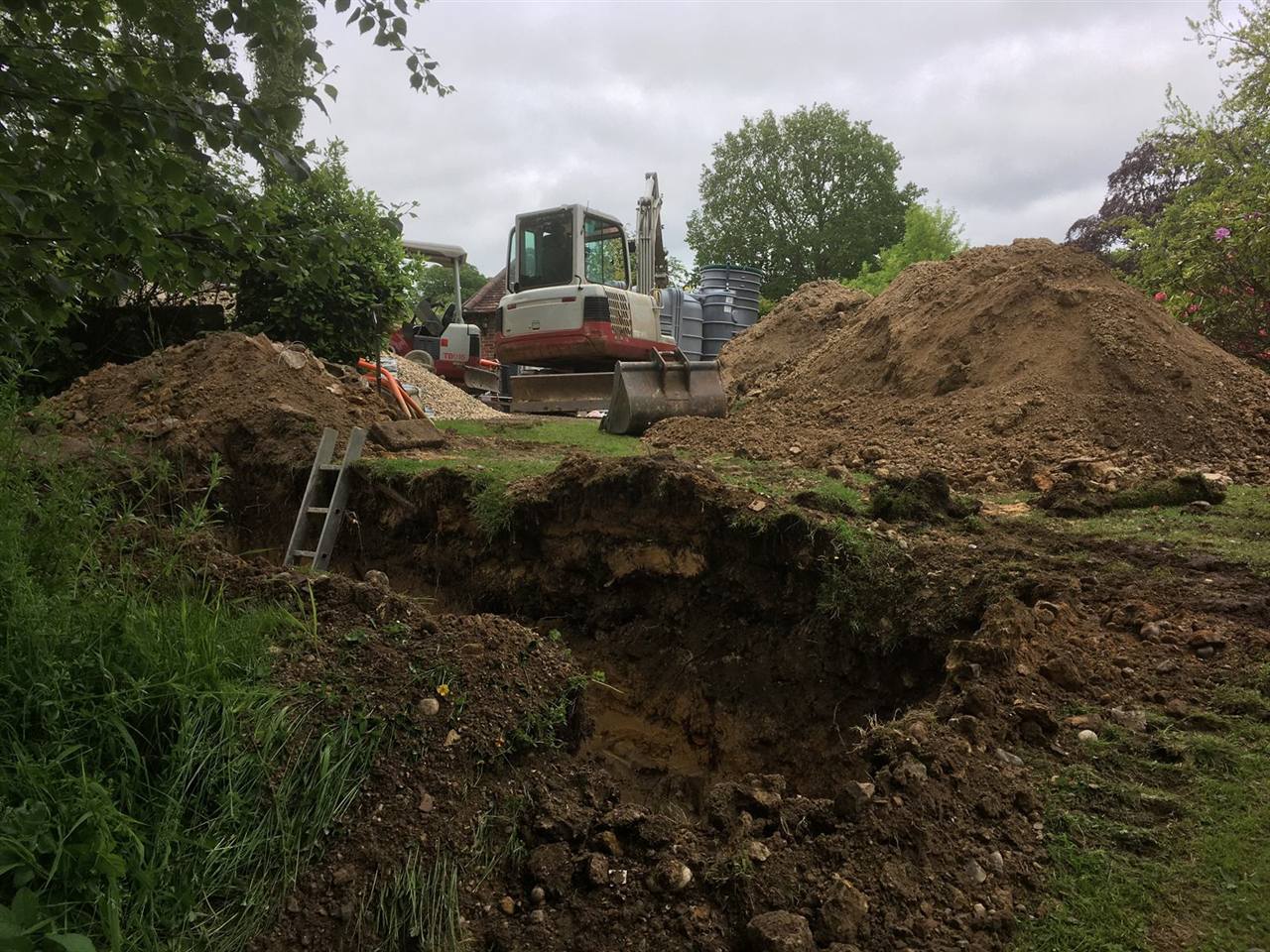

The site was excavated, a concrete pad was laid and the main sewage feed was connected using modern plastic pipework and new inspection chambers.
The result
The sewage and rainwater routes were separated before the installation was backfilled with clean aggregate and finished with topsoil.
Project photographs
The original brick system, excavation, new treatment plant and the completed groundworks.
